Description

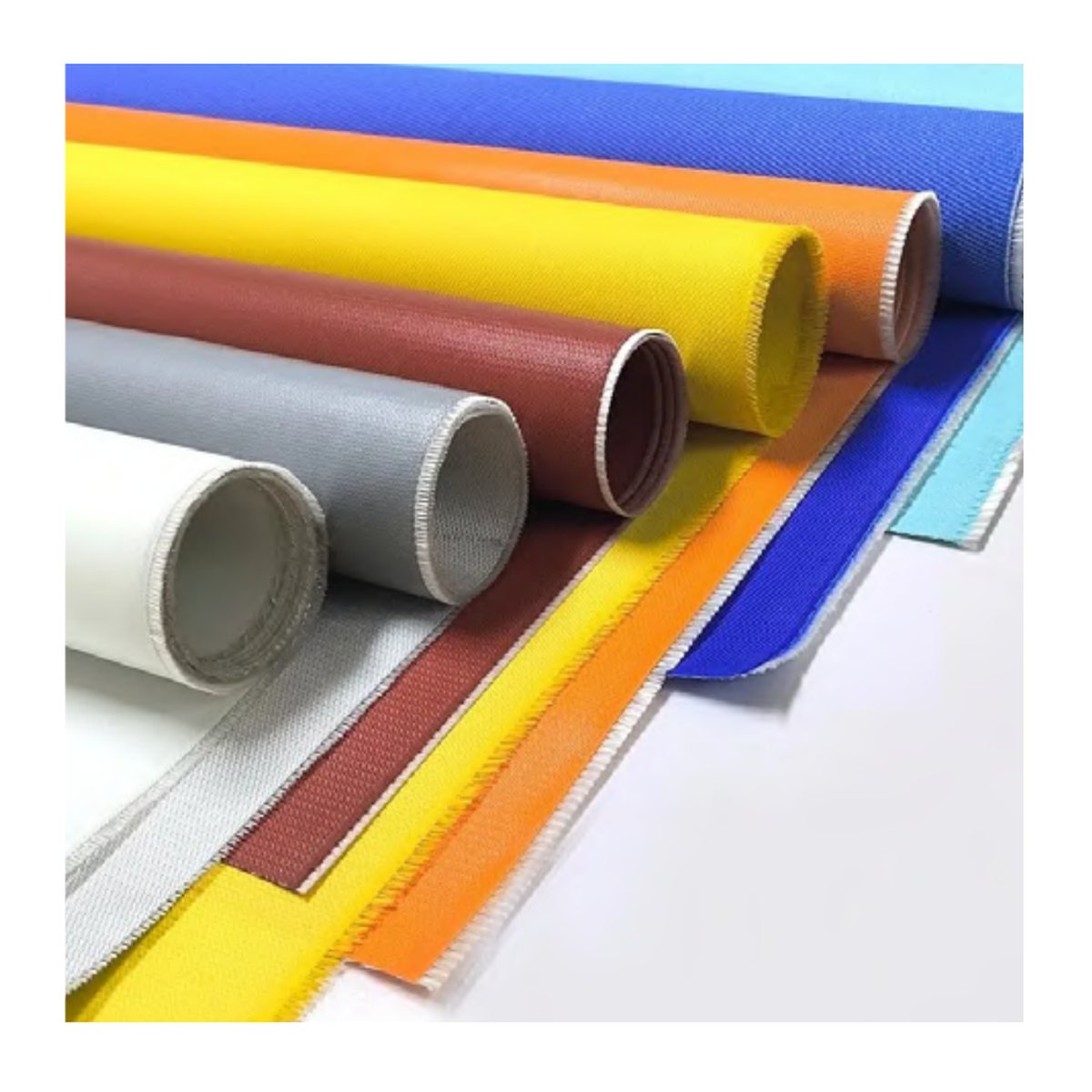

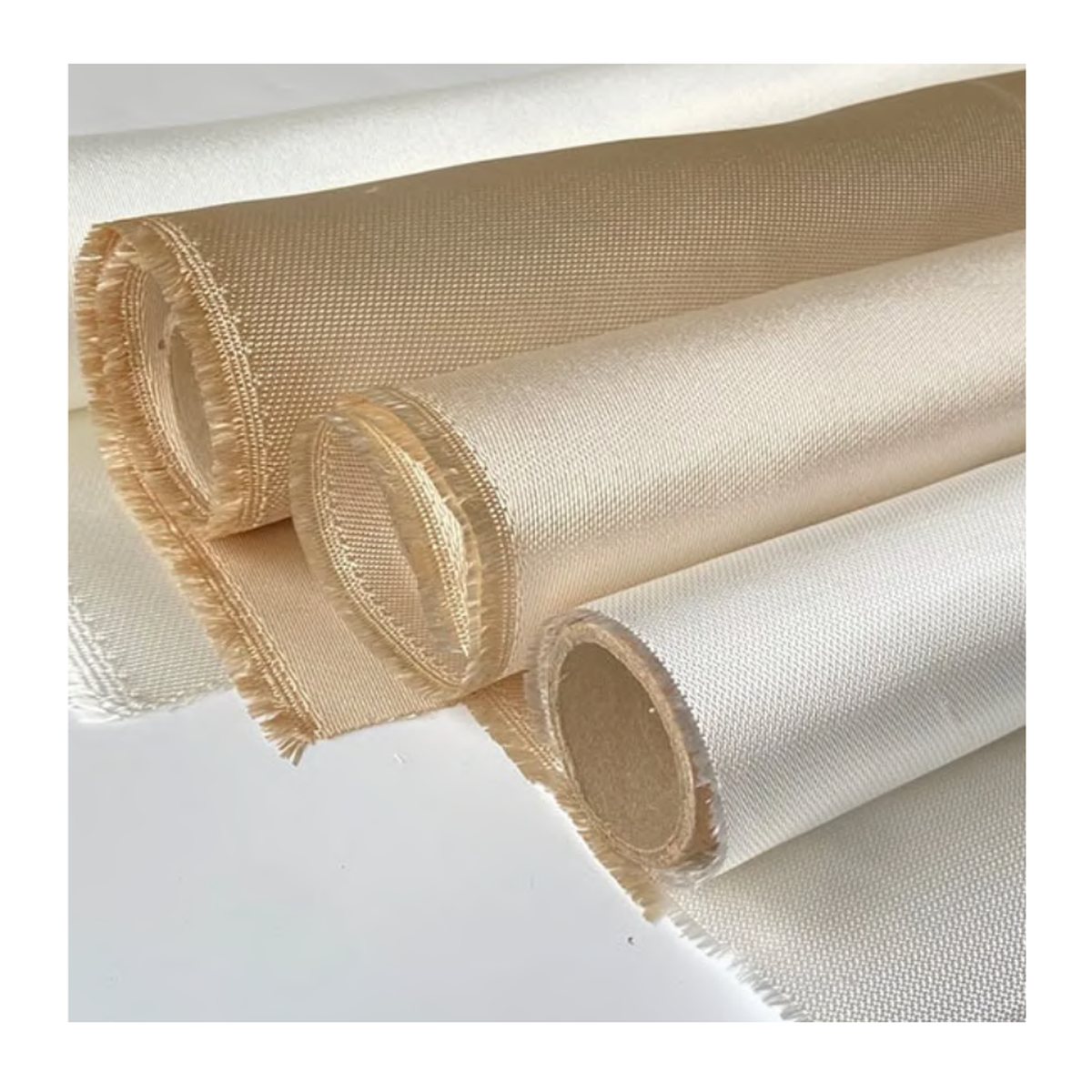

The base material behind fire blankets, welding curtains, insulation covers and expansion joints. Seven weights from light plain weave to heavy 12-harness satin.

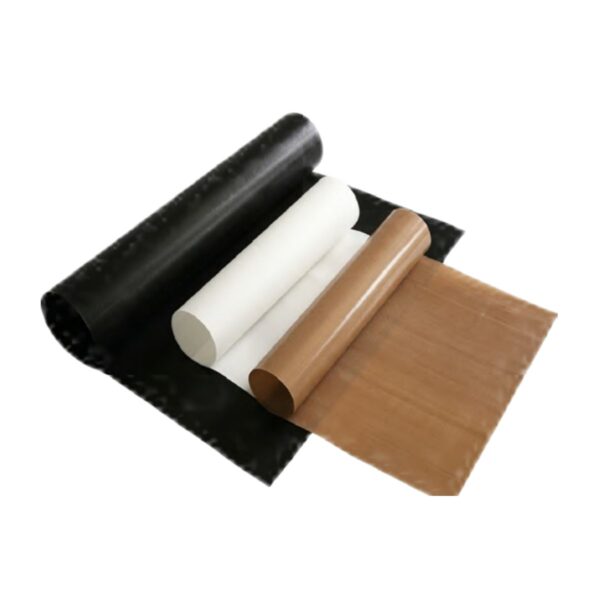

Lighter styles take aluminum foil or PTFE coating. Heavier styles take silicone, PVC, PU, vermiculite or aluminum foil.
Specifications
| Material heat rating | 550 to 1,100 °C (1,022 to 2,012 °F) |
|---|---|
| Coatings | 1080 to 7638: aluminum foil, PTFE. 3732 to 3788: silicone, PVC, PU, vermiculite, aluminum foil |
| Properties | Electrical insulation, chemical resistant, light weight |
By model
| Style | Weight g/m² | Thickness mm | Width cm | Weave |
|---|---|---|---|---|
| 1080 | 47 | 0.05 | 127 | plain |
| 2116 | 104 | 0.09 | 127 | plain |
| 7628 | 210 | 0.18 | 105/127 | plain |
| 7638 | 255 | 0.25 | 100-210 | plain |
| 3732 | 425 | 0.40 | 100-210 | broken twill |
| 3784 | 875 | 0.80 | 100-210 | 8-harness satin |
| 3788 | 1700 | 1.70 | 100-210 | 12-harness satin |
Safety notes
- Sold by the roll or cut length. Ask for roll lengths and lead time.
Custom sizes, colors, packaging and logo printing are available on volume orders. Specifications are supplied by the manufacturer; heat ratings describe the material.
