Description

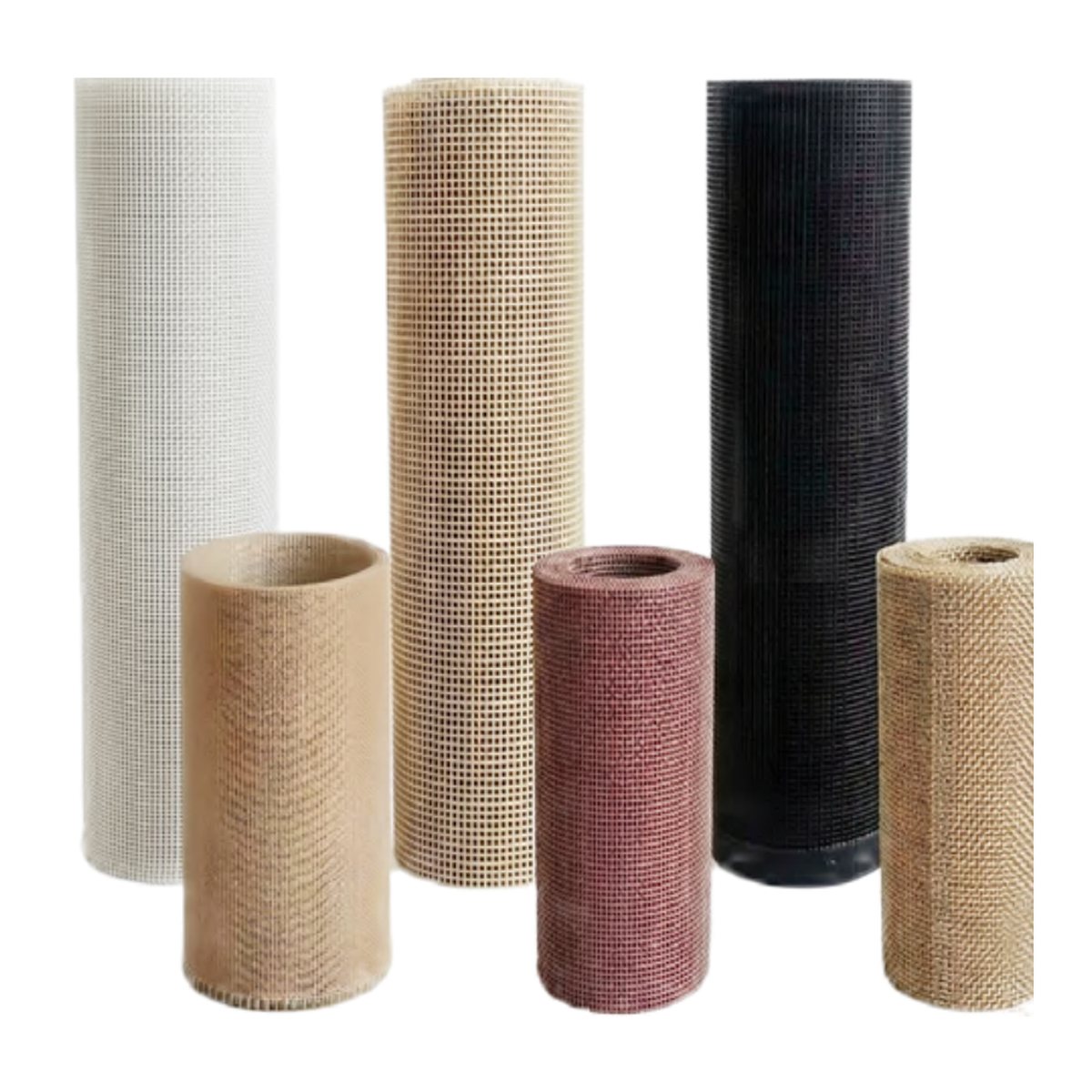

Mesh lets air and heat pass through while product rides on a non-stick surface. Used on dryer belts, UV curing, screen printing and food processing.
Ten mesh styles, up to 4,200 mm wide, in black, white or brown.
Specifications
| Temperature range | -70 to 260 °C (-94 to 500 °F) |
|---|---|
| Max width | 4,200 mm |
By model
| Model | Opening mm | Weight g/m² | Max width mm | Color |
|---|---|---|---|---|
| MESH 101 | 1 x 1 | 480 | 4200 | Black, white, brown |
| MESH 202 | 2 x 2.5 | 640 | 4200 | Black, white, brown |
| MESH 404 DB | 4 x 4 | 490 | 4200 | Single warp single weft, black |
| MESH 404 DK | 4 x 4 | 480 | 4200 | Single warp single weft, brown |
| MESH 404 DSK | 4 x 4 | 580 | 4200 | Single warp double weft, brown |
| MESH 404 DSB | 4 x 4 | 590 | 4200 | Single warp double weft, black |
| MESH 404 SSK | 4 x 4 | 745 | 4200 | Double warp double weft, brown |
| MESH 1005 | 1 x 0.5 | 560 | 4200 | Brown |
| MESH 808 | 8 x 8 | 500 | 4200 | Brown |
| MESH 1010 | 10 x 10 | 470 | 4200 | Brown |
Safety notes
- Sold by the roll or cut to size.
Custom sizes, colors, packaging and logo printing are available on volume orders. Specifications are supplied by the manufacturer; heat ratings describe the material.
